Overview
An HPC (High Performance Computing) cluster is a collection of interconnected computers (nodes) that work together to perform complex computational tasks. These clusters are designed to provide high processing power by combining the resources of multiple nodes to tackle large-scale problems more efficiently than a single computer could. HPC clusters are commonly used in scientific research, simulations, data analysis, and other fields that require significant computing capabilities.
NHM provides an HPC cluster accessible to staff. This guide details the primary components of the cluster and offers instructions on how to utilize it.
Login node
The head node is the node you log into using SSH, and is used to manage files, install software, and submit jobs through the job scheduler (Slurm). The head node is called hpc-head-002.
Compute nodes
The compute nodes are where the actual computations are performed. Jobs are distributed across these nodes to utilize their combined processing power.
| Hostname | CPUs | Memory | GPUs |
|---|---|---|---|
| hpc-cpu-001 | 192 | 2TB | n/a |
| hpc-cpu-005 | 64 | 64GB | n/a |
| hpc-cpu-006 | 64 | 192GB | n/a |
| hpc-cpu-007 | 192 | 2TB | 2 X Nvidia A2 16GB |
| hpc-gpu-001 | 192 | 2TB | 1 x Nvidia Tesla V100 32GB |
| hpc-gpu-002 | 192 | 2TB | 1 x Nvidia Tesla V100 32GB |
Requesting access
Email TS-ServiceDesk@nhm.ac.uk to request access to HPC.
Technical support
Check out the HPC Users Community on Microsoft Teams for assistance from fellow users and cluster admins, as well as the latest news and updates about the cluster.
You can also contact Technology Solutions via email at TS-ServiceDesk@nhm.ac.uk.
Logging in
Once access is granted, you can log in using an SSH client such as:
- PuTTy (available on Windows) - click here for instructions
- Terminal (available on Linux, macOS, Windows) - click here for instructions
Use your NHM username and password, which are the same credentials you use to log into your NHM computer, if you have one.
If you are on an NHM computer (either at the museum or working remotely via VPN), log in directly to the head node hpc-head-002. If you are using a non-NHM computer, you need to connect through the bastion, which is known as orca. For detailed instructions on connecting through the orca, click here.
Using PuTTy

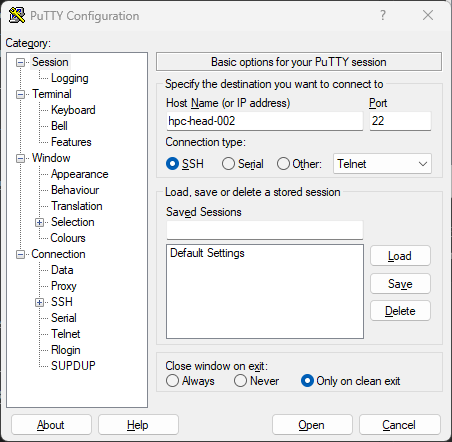

To log in using PuTTy, enter the hostname hpc-head-002 and select Open.
Enter your username and password at the prompt to log in, and you will be presented with the welcome message:
login as: robtest1234
Pre-authentication banner message from server:
| -----------------------------------------------------------
| --- This is the Natural History Museum in London, UK. ---
| --- If you are not an authorised user GO NO FURTHER ! ---
| --- If you have problems connecting, contact : ---
| --- ts-servicedesk@nhm.ac.uk ---
| -----------------------------------------------------------
End of banner message from server
robtest1234@hpc-head-002's password:
Last login: Thu Feb 6 21:36:12 2025 from 157.140.3.51
--------------------------------------
--- Welcome to the HPC cluster ---
--------------------------------------
User guide:
https://naturalhistorymuseum.sharepoint.com/:w:/r/sites/HPCCAB/Sha...
Visit the HPC Users Community on Microsoft Teams:
https://teams.microsoft.com/l/channel/19%3a8aa968ad33924f1e9ac3b4a...
robtest1234@hpc-head-002:~$
Using Terminal
To log in using a terminal, type ssh <username>@hpc-head-002. For example:
$ ssh robtest1234@hpc-head-002
-----------------------------------------------------------
--- This is the Natural History Museum in London, UK. ---
--- If you are not an authorised user GO NO FURTHER ! ---
--- If you have problems connecting, contact : ---
--- ts-servicedesk@nhm.ac.uk ---
-----------------------------------------------------------
robtest1234@hpc-head-002's password:
Welcome to Ubuntu 20.04.6 LTS (GNU/Linux 5.4.0-187-generic x86_64)
* Documentation: https://help.ubuntu.com
* Management: https://landscape.canonical.com
* Support: https://ubuntu.com/advantage
# ...
robtest1234@hpc-head-002:~$
Transferring files
To upload and download data you can use various methods, such as scp, sftp, and rsync. Each method is described below. These instructions assume you are on VPN. If you are not, please see the orca user guide for instructions on how to transfer files through orca.
The examples below show how to use these tools from the command line, but you can also use graphical tools, such as WinSCP, FileZilla and Cyberduck.
scp
To upload files or directories from your computer to the cluster:
scp /path/to/source <username>@hpc-head-002:/path/to/destination
For example:
scp -r myfiles/ robtest1234@hpc-head-002:~/mystuff
robtest1234@hpc-head-002's password:
file2 100% 5 0.3KB/s 00:00
file3 100% 5 0.3KB/s 00:00
file1 100% 5 0.3KB/s 00:00
To download from the cluster to your computer:
scp -r <username>@hpc-head-002:/path/to/source /path/to/destination
For example:
scp -r robtest1234@hpc-jobs-001:~/mystuff .
robtest1234@hpc-jobs-001's password:
file3 100% 5 0.1KB/s 00:00
file2 100% 5 0.1KB/s 00:00
file1 100% 5 0.1KB/s 00:00
sftp
To upload files or directories from your computer to the cluster, use the put option. For example:
sftp robtest1234@hpc-head-002
robtest1234@hpc-head-002's password:
Connected to hpc-head-002.
sftp> put -r myfiles/
Uploading myfiles/ to /home/robtest1234/myfiles
Entering myfiles/
file2 100% 5 0.3KB/s 00:00
file3 100% 5 0.3KB/s 00:00
file1 100% 5 0.2KB/s 00:00
sftp> exit
To download files or directories from the cluster to your computer, use the get option. For example:
sftp robtest1234@hpc-head-002
robtest1234@hpc-head-002's password:
Connected to hpc-head-002.
sftp> get -r mystuff
Fetching /home/robtest1234/mystuff/ to mystuff
Retrieving /home/robtest1234/mystuff
file3 100% 5 0.1KB/s 00:00
file2 100% 5 0.1KB/s 00:00
file1 100% 5 0.1KB/s 00:00
sftp> exit
rsync
To upload files or directories from your computer to the cluster:
rsync -avP /path/to/source <username>@hpc-head-002:/path/to/destination
For example:
rsync -avP mystuff robtest1234@hpc-head-002:~/somedir
-----------------------------------------------------------
--- This is the Natural History Museum in London, UK. ---
--- If you are not an authorised user GO NO FURTHER ! ---
--- If you have problems connecting, contact : ---
--- ts-servicedesk@nhm.ac.uk ---
-----------------------------------------------------------
robtest1234@hpc-head-002's password:
sending incremental file list
mystuff/
mystuff/file1
5 100% 0.00kB/s 0:00:00 (xfr#1, to-chk=2/4)
mystuff/file2
5 100% 4.88kB/s 0:00:00 (xfr#2, to-chk=1/4)
mystuff/file3
5 100% 4.88kB/s 0:00:00 (xfr#3, to-chk=0/4)
sent 281 bytes received 77 bytes 79.56 bytes/sec
total size is 15 speedup is 0.04
To download files or directories from the cluster to your computer:
rsync -avP <username>@hpc-head-002:/path/to/source /path/to/destination
For example:
rsync -avP robtest1234@hpc-head-002:~/somedir/mystuff .
-----------------------------------------------------------
--- This is the Natural History Museum in London, UK. ---
--- If you are not an authorised user GO NO FURTHER ! ---
--- If you have problems connecting, contact : ---
--- ts-servicedesk@nhm.ac.uk ---
-----------------------------------------------------------
robtest1234@hpc-head-002's password:
receiving incremental file list
mystuff/
mystuff/file1
5 100% 4.88kB/s 0:00:00 (xfr#1, to-chk=2/4)
mystuff/file2
5 100% 4.88kB/s 0:00:00 (xfr#2, to-chk=1/4)
mystuff/file3
5 100% 4.88kB/s 0:00:00 (xfr#3, to-chk=0/4)
sent 85 bytes received 309 bytes 87.56 bytes/sec
total size is 15 speedup is 0.04
smb
You can transfer files via smb (also known as samba or cifs) using. File Explorer in Windows or Finder in macOS.

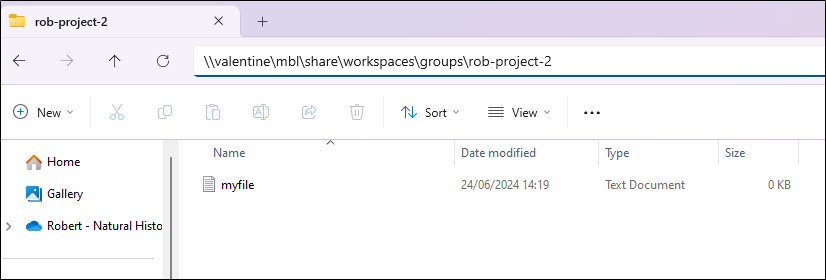

To do this via File Explorer, browse to the location of the workspace, such as \\valentine\mbl\share\workspaces\groups\<folder_name>.
Or you can use the command line, as described below. You may need to install smbclient first. On Ubuntu Linux you can do this by running sudo apt install smbclient.
To upload a file, connect to Valentine:
smbclient -U <username>@nhm.ac.uk \\\\valentine\\<share_name>
Change to the directory you want to upload the file to:
cd <destination_folder>
Upload the file:
put <file_name>
Check that the file has been uploaded:
ls
Exit the prompt:
exit
For example:
$ smbclient -U robef3@nhm.ac.uk \\\\valentine\\mbl
Password for [robef3@nhm.ac.uk]:
Try "help" to get a list of possible commands.
smb: \> cd share\workspaces\groups\rob-project-2\
smb: \share\workspaces\groups\rob-project-2\> put myfile.txt
putting file myfile.txt as \share\workspaces\groups\rob-project-2\myfile.txt (0.0 kb/s) (average 0.0 kb/s)
smb: \share\workspaces\groups\rob-project-2\> ls
. D 0 Tue Apr 22 16:48:44 2025
.. D 0 Tue Apr 22 13:31:23 2025
myfile.txt A 0 Tue Apr 22 16:48:44 2025
245111980032 blocks of size 1024. 66813775872 blocks available
smb: \share\workspaces\groups\rob-project-2\> exit
To download a file, connect to Valentine:
smbclient -U <username>@nhm.ac.uk \\\\valentine\\<share_name>
Change to the directory you want to download the file from:
cd <origin_folder>
Download the file:
get <file_name>
Exit the prompt:
exit
For example:
$ smbclient -U robtest1234@nhm.ac.uk \\\\valentine\\mbl
Password for [robtest1234@nhm.ac.uk]:
Try "help" to get a list of possible commands.
smb: \> cd share\workspaces\groups\rob-project-2\
smb: \share\workspaces\groups\rob-project-2\> get myfile.txt
getting file \share\workspaces\groups\rob-project-2\myfile.txt of size 0 as myfile.txt (0.0 KiloBytes/sec) (average 0.0 KiloBytes/sec)
smb: \share\workspaces\groups\rob-project-2\> exit
Data storage
- Home folders are found in
/home - Important project data should be stored in
/workspaces/groups - For temporary storage needed during job execution use
/mbl/share/scratch - Shared software for use by anyone can be stored in
/software
Home folders
- Path:
/home/<username> - Backed up: once a day
- Quota: 50GB
-
Used for:
- Small files
- Software only accessible to you (personal Conda environments, etc.)
When you log in, you’ll be in your home directory, a personal area only you can access. Here, you can save small files and install software (Conda environments, etc.), but space is limited to 50GB. For larger files or long-term projects, use group/project folders.
Group/project folders
-
Paths:
The groups folder can be accessed via any of these symlinks:
/workspaces/groups/mbl/share/workspaces/groups/gpfs/nhmfsa/bulk/share/data/mbl/share/workspaces/groups
- Backed up: every 1-2 days
- Quota: 2TB
-
Used for:
- Projects
- Collaboration with colleagues
- Large files
- Important data intended for long-term storage
It’s best to store your important work here. If you need a new folder for your project, reach out to TS for assistance. Colleagues can also be given access, making these group workspaces ideal for collaborative efforts. Each folder has a default storage limit of 2TB, but can be increased if necessary.
Shared software
-
Paths:
The shared software area can be accessed via any of these symlinks:
/software/mbl/share/software/gpfs/nhmfsa/bulk/share/data/mbl/share/software
- Backed up: every 1-2 days
- Quota: None
-
Used for:
- Software available to all users
- Software you have compiled (usually with the
makecommand) and want to make available for other users
Scratch space
- Path:
/mbl/share/scratch - Backed up: never
- Quota: None
-
Used for:
- Temporary storage for files during job execution
- Data that can be easily recreated
Scratch space serves as a temporary storage area for files needed only during job execution. The benefit of using this folder is that it won’t affect your overall disk quota. Files in this folder are automatically deleted after 21 days of inactivity. However, it’s recommended to delete them manually once you’re finished.
Refrain from using the
/tmpdirectory for temporary output, as it is reserved for system processes. Any data stored in/tmpmay be deleted without notice.
Installing software
You can install software in the following locations:
- Your home folder (using tools such as Conda).
- In a Singularity/Apptainer container image.
- The shared software area (by compiling the software).
Each method has pros and cons as described below.
| Location | Pros | Cons |
|---|---|---|
| Home folder | <ul><li>Easy to do using tools like Conda</li><li>Only accessible by you, so anything you install won’t affect other users</li></ul> | <ul><li>Space in your home folder is limited to 50GB |
| Singularity image | <ul><li>An isolated environment where you can install all the dependencies you need</li><li>A consistent and reproducible software environment</li><li>Portable - you can transfer the image to your own computer or other HPC clusters</li><li>Shareable - other users can use the image as well (provided the image file is in a shared location, like a group workspace) | <ul><li>Learning curve to creating the image and running the container |
| Shared software area | <ul><li>No limits on space</li><li>Other users can also use the software | <ul><li>You must compile the software, so it’s more complicated and takes longer</li><li>It can be difficult to do if the software requires a lot of dependencies |
In your home folder
The easiest method of installing software is in your home folder. To do this you can use something like Conda, as described below.
Installing conda
You can download Conda from here. Follow the instructions below to install it.
On hpc-head-002, change into your home folder:
cd ~
Download Miniconda installer:
wget https://repo.anaconda.com/miniconda/Miniconda3-latest-Linux-x86_64.sh
Make the file executable:
chmod +x Miniconda3-latest-Linux-x86_64.sh
Install Miniconda:
./Miniconda3-latest-Linux-x86_64.sh
For example:
robtest1234@hpc-head-002:~$ wget https://repo.anaconda.com/miniconda/Miniconda3-latest-Linux-x86_64.sh
--2025-04-22 08:25:48-- https://repo.anaconda.com/miniconda/Miniconda3-latest-Linux-x86_64.sh
Resolving repo.anaconda.com (repo.anaconda.com)... 104.16.32.241, 104.16.191.158, 2606:4700::6810:20f1, ...
Connecting to repo.anaconda.com (repo.anaconda.com)|104.16.32.241|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 154615621 (147M) [application/octet-stream]
Saving to: ‘Miniconda3-latest-Linux-x86_64.sh’
Miniconda3-latest-Linux-x86_64.sh 100%[==========================================================>] 147.45M 43.8MB/s in 3.4s
2025-04-22 08:26:04 (42.9 MB/s) - ‘Miniconda3-latest-Linux-x86_64.sh’ saved [154615621/154615621]
robtest1234@hpc-head-002:~$ chmod +x Miniconda3-latest-Linux-x86_64.sh
robtest1234@hpc-head-002:~$ ./Miniconda3-latest-Linux-x86_64.sh
Welcome to Miniconda3 py312_25.1.1-2
In order to continue the installation process, please review the license
agreement.
Please, press ENTER to continue
>>>
Answer yes to any questions, accept the default options, and wait for the installation to complete. Once done, reload your terminal:
. ~/.bashrc
You should see (base) in front of your prompt. This shows that Conda has been installed. For example:
(base) robtest1234@hpc-head-002:~$
Installing software with conda
You are now ready to use Conda to install any software you need. As an example, we will demonstrate how to use Conda to install an application called R.
This command will create a conda environment called r-environment and install two groups of packages called r-essentials and r-base:
conda create -n r-environment r-essentials r-base
For example:
(base) robtest1234@hpc-head-002:~$ conda create -n r-environment r-essentials r-base
Retrieving notices: done
Channels:
- conda-forge
- defaults
Platform: linux-64
Collecting package metadata (repodata.json): done
Solving environment: done
...
It may take a few minutes to install. Once done, activate the environment. You will see your prompt change from (base) to (r-environment):
conda activate r-environment
For example:
(base) robtest1234@hpc-head-002:~$ conda activate r-environment
(r-environment) robtest1234@hpc-head-002:~$
You can use the which command to check that R is indeed installed in your home directory:
which R
For example:
(r-environment) robtest1234@hpc-head-002:~$ which R
/home/robtest1234/miniconda3/envs/r-environment/bin/R
Finally, launch R:
R
Example:
(r-environment) robtest1234@hpc-head-002:~$ R
R version 4.4.3 (2025-02-28) -- "Trophy Case"
Copyright (C) 2025 The R Foundation for Statistical Computing
Platform: x86_64-conda-linux-gnu
R is free software and comes with ABSOLUTELY NO WARRANTY.
You are welcome to redistribute it under certain conditions.
Type 'license()' or 'licence()' for distribution details.
R is a collaborative project with many contributors.
Type 'contributors()' for more information and
'citation()' on how to cite R or R packages in publications.
Type 'demo()' for some demos, 'help()' for on-line help, or
'help.start()' for an HTML browser interface to help.
Type 'q()' to quit R.
>
Singularity/Apptainer
Singularity (sometimes called Apptainer) is a useful tool that allows you to install software inside an isolated environment known as a container. This allows you to install the software you need, without worrying about missing dependencies or conflicts with other software already installed on the cluster. You can learn more about it here.
If you’ve worked with Docker, then this concept will be familiar to you. Singularity is commonly used on HPC systems instead of Docker, as Singularity can be run without admin rights. However, they are very similar to each other, and you can even convert Docker images to Singularity.
Creating a Singularity image
You can create a Singularity image on your own computer, provided you have Singularity installed. Alternatively, you can use the software-building server hpc-sw-003, which already has it installed. Email TS-ServiceDesk@nhm.ac.uk to request access to it.
Using PuTTy or a terminal, SSH to hpc-sw-003:
ssh <username>@hpc-sw-003
Create your Singularity image file. You can name it anything, but it should end in .def:
touch <filename>.def
Open it with a text editor and construct your file. Here is a simple example:
Bootstrap: docker
From: ubuntu:24.04
%post
apt update
apt-get install bwa samtools -y
%help
This is an Ubuntu container with bwa and samtools installed.
Here is an explanation of the different sections.
This section means use the ubuntu:24.04 image from the Docker Hub container registry:
Bootstrap: docker
From: ubuntu:24.04
You can use other container registries and images, depending on your use case.
The %post section allows you to list commands to run when building the image. In this example we are installing the bwa and samtools applications inside the image:
%post
apt update
apt-get install bwa samtools -y
The %help section contains a helpful label that describes what the container does:
%help
This is an Ubuntu container with bwa and samtools installed.
Now that you have your definition file, you can build the image. This will download the base image (Ubuntu in this example), install the software (bwa and samtools), and create an image file ending in .sif:
singularity build <filename>.sif <filename>.def
Example:
robtest1234@hpc-sw-003:~/bwa$ singularity build bwa.sif bwa.def
INFO: User not listed in /etc/subuid, trying root-mapped namespace
INFO: The %post section will be run under the fakeroot command
INFO: Starting build...
Copying blob 2726e237d1a3 done |
Copying config 602eb6fb31 done |
Writing manifest to image destination
2025/04/22 11:10:26 info unpack layer: sha256:2726e237d1a374379e783053d93d0345c8a3bf3c57b5d35b099de1ad777486ee
INFO: Running post scriptlet
+ apt update
Get:1 http://security.ubuntu.com/ubuntu noble-security InRelease [126 kB]
Get:2 http://archive.ubuntu.com/ubuntu noble InRelease [256 kB]
# ...
Processing triggers for ca-certificates (20240203) ...
Updating certificates in /etc/ssl/certs...
0 added, 0 removed; done.
Running hooks in /etc/ca-certificates/update.d...
done.
INFO: Adding help info
INFO: Creating SIF file...
INFO: Build complete: bwa.sif
Now that you have an image file, you can run your container using the following command:
singularity run <filename>.sif
This is useful to see what you’ve created, as you can explore the file system and see what’s installed. You can see from the Apptainer> prompt that you are inside the container. For example:
robtest1234@hpc-sw-003:~/bwa$ singularity run bwa.sif
Apptainer>
Now that you’ve built your image you can upload it to the HPC cluster using sftp or scp. For example:
robtest1234@hpc-sw-003:~/bwa$ sftp hpc-head-002
-----------------------------------------------------------
--- This is the Natural History Museum in London, UK. ---
--- If you are not an authorised user GO NO FURTHER ! ---
--- If you have problems connecting, contact : ---
--- ts-servicedesk@nhm.ac.uk ---
-----------------------------------------------------------
robtest1234@hpc-head-002's password:
Connected to hpc-head-002.
sftp> put bwa.sif
Uploading bwa.sif to /gpfs/nhmfsa/bulk/share/data/mbl/share/workspaces/users/robtest1234/bwa.sif
bwa.sif 100% 76MB 16.6MB/s 00:04
sftp> exit
See Example 3 for guidance on how to write your Slurm script to run your Singularity container on the HPC cluster.
Converting a Docker image to Singularity
Instead of creating a Singularity image from scratch, you can convert it from an existing Docker image.
To do this, pull the image from the container registry (typically Docker Hub, but could be somewhere else):
singularity pull docker://<image>
Example:
a-robef3@hpc-sw-003:~$ singularity pull docker://rockylinux/rockylinux
INFO: Converting OCI blobs to SIF format
INFO: Starting build...
Copying blob 71cc2ddb2ecf done |
Copying config 523ffac7fb done |
Writing manifest to image destination
2025/04/22 11:47:25 info unpack layer: sha256:71cc2ddb2ecf0e2a974aec10b55487120f03759e86e08b50a7f4c5d77638ab9b
INFO: Creating SIF file...
This will create an image file ending in .sif. Then you can upload it to hcp-head-002 as described in the previous section.
In the shared software area
If you install software in the shared software area, it means other users can also use it. There are two shared software locations, as described below.
| Location | Description |
|---|---|
/software/testing | <ul><li>Anyone can install software here.<li>It is useful for testing and trying out new software installations. |
/software/common | <ul><li>Only superusers can install software here.<li>It is intended for software that has been tested and is known to work. |
You can check which software has already been installed in the shared software area:
ml avail
For example:
robtest1234@hpc-head-002:~$ ml avail
------------------------------------------------- /software/common/lmod/lmod/modulefiles/Core --------------------------------------------------
bcl2fastq/2.2.0 diamond/0.9.31 (D) java/8.211 minimap2/2.16 python/3.7.bkp
bedtools/2.29.0 emacs/26.2 jre/8.211 minimap2/2.17 (D) python/3.7 (D)
blast/2.4.0 flash/latest kallisto/0.44.0 ncbi_ngs/2.9.0 samtools/1.9
blast/2.9.0 (D) gffread/0.11.4 kallisto/0.45.0 ncbi_ngs/2.9.4 (D) samtools/1.10 (D)
bowtie/2.2.5 gmap/2019-09-12 kallisto/0.46.0 (D) perl/5.28 settarg
centrifuge/1.0.4beta gnuplot/5.2.6 lmod plink/1.07 stringtie/2.0
class2/2.1.7 hmmer/3.2.1 magicblast/1.4.0 prodigal/2.6.3 tophat/2.1.1
diamond/0.9.24 htop/2.2.0 megan/6.15.2 python/2.7 transdecoder/5.5.0
------------------------------------------------------ /software/testing/modulefiles/Core ------------------------------------------------------
BAMscorer/BAMscorer bam2prof/bam2prof ibs/ibs pear/pear
Eigensoft/Eigensoft bam2vcf/bam2vcf idba/1.1.3 platanus/2.02
FastQC/fastqc bcftools/fastqc iqtree/1.6.12 platanus/2.2.2 (D)
GATK/gatk beagle/4.0 kraken-biom/1.0.1 plink/1.9 (D)
JAGS/4.3.0.OLD beagle5.1/beagle51 kraken2/2.0.8-b preseq/2.0
JAGS/4.3.0 (D) beast/2.6.3 kraken2/2.1.2 (D) raxml/8.2.12
You can use the ml spider command for more detail:
robtest1234@hpc-head-002:~$ ml spider
--------------------------------------------------------------------------------------------------------------------------------------------
The following is a list of the modules currently available:
--------------------------------------------------------------------------------------------------------------------------------------------
BAMscorer: BAMscorer/BAMscorer
BSgenome: BSgenome/3.9
Software infrastructure for efficient representation of full genomes and their SNPs.
DESeq: DESeq/1.36.0
DESeq library for differential expression analysis.
Eigensoft: Eigensoft/Eigensoft
FastQC: FastQC/fastqc
GATK: GATK/gatk
JAGS: JAGS/4.3.0.OLD, JAGS/4.3.0
To load a piece of software into your environment:
ml <software_name>/<version>
For example:
ml python/3.7
When you go to the folders /software/testing or /software/common, you may find more names, but if they do not appear when you run any of the commands above, they haven’t been properly installed.
Example of installing shared software
Next, a real example: installing AdapterRemoval. You can follow this as a guideline to install any other software. Please use this as a rough guide, as the precise steps can vary depending on the software.
Move to the /software/testing folder:
cd /software/testing
Create the folder where you will keep the software:
mkdir -p adapterremoval/2.3.4/{src,x86_64/bin}
Move to the folder where you will download the software:
cd adapterremoval/2.3.4/src
Download the software (using the -O option, you can rename the downloaded file):
wget -O adapterremoval-2.3.4.tar.gz https://github.com/MikkelSchubert/adapterremoval/archive/v2.3.4.tar.gz
Decompress the files:
tar xvzf adapterremoval-2.3.4.tar.gz
Move to the folder where the software can be compiled:
cd adapterremoval-2.3.4
Compile the software:
make
Now you have a locally executable programme in /software/testing/adapterremoval/2.3.4/src/adapterremoval-2.3.4/build/AdapterRemoval. Copy the executable file to the bin folder you created at the beginning:
cp build/AdapterRemoval /software/testing/adapterremoval/2.3.4/x86_64/bin
Now it is necessary to create a module file which will allow you to load the software anytime you use it from any location. Create a folder to store the module file (make sure the folder name is the same as the one you created in /software/testing):
mkdir -p /software/testing/modulefiles/Core/adapterremoval
Then create the .lua file, which contains all the module information:
touch /software/testing/modulefiles/Core/adapterremoval/2.3.4.lua
This is the information that should be copied into the .lua file (using a text editor like vim or nano):
whatis("AdapterRemoval v2.3.4 - rapid adapter trimming, identification, and read merging http://adapterremoval.readthedocs.io/")
local name = "adapterremoval"
local version = "2.3.4"
local base = pathJoin("/software", "testing", name, version, "x86_64")
prepend_path("PATH", pathJoin(base, "bin"))
You can now see your new software is available for use by typing ml --ignore-cache avail adapterremoval (you can also see there is an older version 2.3.1 available, which is fine – it means users can use either version):
robtest1234@hpc-head-002:~$ ml --ignore-cache avail adapterremoval
------------------------------------------------ /software/testing/modulefiles/Core -------------------------------------------------
adapterremoval/2.3.1 adapterremoval/2.3.2 adapterremoval/2.3.4 (D)
Where:
D: Default Module
Use "module spider" to find all possible modules.
Use "module keyword key1 key2 ..." to search for all possible modules matching any of the "keys".
Now you’re ready to use your new software, so you load it into your environment:
ml adapterremoval/2.3.4
You can check that it’s loaded by typing which AdapterRemoval:
robtest1234@hpc-head-002:~$ which AdapterRemoval
/software/testing/adapterremoval/2.3.4/x86_64/bin/AdapterRemoval
Finally, you can run the software:
robtest1234@hpc-head-002:~$ AdapterRemoval
AdapterRemoval ver. 2.3.4
This program searches for and removes remnant adapter sequences from
your read data. The program can analyze both single end and paired end
data. For detailed explanation of the parameters, please refer to the
man page. For comments, suggestions and feedback please use
https://github.com/MikkelSchubert/adapterremoval/issues/new
If at some point you want to install a newer version of the software, you don’t need to delete the old one (actually it can be useful to have both). You can install the new version in the same folder, for example:
mkdir -p /software/testing/adapterremoval/3.0.0/{src,x86_64/bin}
To load the old version:
ml adapterremoval/2.3.4
To load the new version:
ml adapterremoval/3.0.0
Using the job scheduler (Slurm)
Now you have all the files and programs you need, but there’s a problem: lots of people are running huge data analyses simultaneously. That’s why job scheduling systems have been developed: to ensure a fair distribution of the computing resources across all users and to allow the cluster administrators to manage such resources. HPC uses a standard open-source job scheduling system called Slurm. A complete user guide can be found on their website and ideally you should become familiar with it.
Partitions/queues explained
The cluster has four main partitions (also known as queues) where you can submit your analyses (from here onwards sometimes defined as jobs) depending on their length and computational requirements: hour, day, week and month. As a general rule, the shorter the job and the less computationally expensive, the faster it gets assigned. Long analyses have lower priority.
| Partition | Use case |
|---|---|
| hour | Very short jobs, or things that can be sped up to less than an hour by multithreading |
| day | Average jobs, or things that even with multithreading can take up to 24 hours |
| week | Long jobs that take up to seven days, either because they cannot be parallelised or because they have low priority |
| month | Non-important jobs that can run for a long time and have low priority |
Additionally, there is an interactive partition, that can be used to test computationally intensive tasks (almost any job really) to see how they perform, with a strict control of the used resources. There are many ways of using interactive, but it should not be abused as it can reduce the priority assigned to your future analyses. This is because the scheduling system calculates the priority of your jobs depending on how much you’re using the cluster, and usually when you use an interactive session you’re requesting a lot of resources (most of which you aren’t even using).
Submitting a job
- Example 1 - Running a job using software installed with conda
- Example 2 - Running a job using software from the shared software area
- Example 3 - Running a job using a Singularity container
- Example 4 - Running a job using the GPU
Example 1 - Running a job using software installed with conda
The first step is to create a file that contains all the instructions for the job scheduler to run the analysis. Here is an example file which I’ve named slurm_script.sh:
#!/bin/bash
#SBATCH -J rob-job
#SBATCH -p day
#SBATCH --mem=2GB
#SBATCH -c 2
#SBATCH -e /home/robtest1234/demo/test2/job.%J.err
#SBATCH -o /home/robtest1234/demo/test2/job.%J.out
#SBATCH -w hpc-gpu-002
#SBATCH --mail-user=robtest1234@nhm.ac.uk
#SBATCH --mail-type=ALL
source ~/miniconda3/etc/profile.d/conda.sh
conda init bash
conda activate base
echo "Starting at `date`"
echo "Running on hosts: $SLURM_NODELIST"
echo "Running on $SLURM_NNODES nodes"
echo "Current workig directory is `pwd`"
python python_script.py
The #SBATCH lines allow you to define various options for your job, as described below. Most of these options are not required, and there are many more that are not listed here, but they are important for optimization when the cluster gets busy and lots of people are submitting jobs to the same queue/partition:
-J Job name
-p Partition (queue)
--mem Memory
-c Number of CPUs
-e Output file for standard error
-o Output file for standard output
--mail-user Who to send email notification for job state changes
--mail-type Notify on state change: BEGIN, END, FAIL or ALL
Further options are described here.
These lines are required if you are using Conda from your home directory:
source ~/miniconda3/etc/profile.d/conda.sh
conda init bash
This line allows you to activate a Conda environment called base:
conda activate base
The echo commands are not required, but they demonstrate how you can add additional output for your job:
echo "Starting at `date`"
echo "Running on hosts: $SLURM_NODELIST"
echo "Running on $SLURM_NNODES nodes."
echo "Current working directory is `pwd`"
Finally, this is the actual command that you’re running. In this example I’m using Python to run a script called python_script.py, which is located in the same directory as my slurm_script.sh:
python python_script.py
Use sbatch to submit your job:
sbatch <script_name>
For example:
robtest1234@hpc-head-002:~/demo/test2$ sbatch slurm_script.sh
Submitted batch job 965216
If your analysis produces intermediate files between steps, you should set up a scratch folder for temporary files in
/mbl/share/scratch. Ideally, clean up after your job. Scratch is set to auto-delete files after 21 days.
Example 2 - Running a job using software from the shared software area
Here is another sample job:
This time, instead of using Conda, it is using the ml command to load the AdapterRemoval software from the shared software area:
ml adapterremoval
Notice that instead of having a fixed sample name/ID, you can add a variable to your .sh file. The variable NAME allows you to make the shell script more flexible, as you do not have to modify it any time you have a different sample name/ID:
NAME=$1
Once the Slurm file is ready, you just need to submit the job:
sbatch slurm_script.sh SRR001
Or:
sbatch slurm_script.sh SRR002
If you have a text file listing all your sample names/IDs (in this case data/runids.txt), you can even use a for loop to submit several jobs simultaneously (there is also a way to do it internally in the script using an array job, but that is a more complex topic):
for i in $(cat data/runids.txt); do sbatch slurm_script.sh $i; done
If there are enough computational resources the jobs will run immediately (or at least some of them), otherwise they will be placed in a queue.
Example 3 - Running a job using a Singularity container
Here is another sample job, this time using a Singularity container. Note the use of backslashes at the end of the lines, as the singularity command is split across multiple lines for readability:
#!/bin/bash
#SBATCH --partition=hour
#SBATCH -c 2
#SBATCH -e /home/robtest1234/demo/test3/job.%J.err
#SBATCH -o /home/robtest1234/demo/test3/job.%J.out
singularity run \
--bind /workspaces/groups/rob-project-2:/mnt \
/workspaces/groups/singularity-images/audiowaveform/1.7.0/audiowaveform.sif \
audiowaveform --version
This line means that we’re going to run a Singularity container:
singularity run
By default, Singularity can only access data in your home folder. However, you can use the --bind option to mount additional folders inside the container, like this:
--bind /path/on/host:/path/in/container
This would be useful if, for example, the job needed to read or write data in the /workspaces/groups/rob-project-2 folder:
--bind /workspaces/groups/rob-project-2:/mnt
This line refers to the location of the singularity image:
/workspaces/groups/singularity-images/audiowaveform/1.7.0/audiowaveform.sif
This is the application or command that we want to execute inside the container:
audiowaveform --version
Example 4 - Running a job using the GPU
Here is a sample job that makes use of the GPU. Note that only one GPU job per node can run per at a time – if someone else’s job is using the GPU, your job will wait in the queue until theirs is finished.
#!/bin/bash
#SBATCH -J rob-biomedisa
#SBATCH -p hour
#SBATCH --mem=2GB
#SBATCH -c 2
#SBATCH --gres=gpu
#SBATCH -e /home/robtest1234/demo/test4/job.%J.err
#SBATCH -o /home/robtest1234/demo/test4/job.%J.out
#SBATCH --mail-user=robtest1234@nhm.ac.uk
#SBATCH --mail-type=ALL
singularity run --nv \
/workspaces/groups/singularity-images/biomedisa/23.01.1/biomedisa.sif \
python3 /biomedisa/biomedisa_features/pycuda_test.py
This line is required to allow Slurm to access the GPU:
#SBATCH --gres=gpu
Like Example 3, this job runs in a Singularity container. The --nv option is necessary to allow Singularity to access the GPU.
Viewing and managing your jobs
You can use squeue to view the status of jobs in the queue:
squeue -l
For example:
robtest1234@hpc-head-002:~$ squeue -l
Tue Apr 22 13:10:03 2025
JOBID PARTITION NAME USER STATE TIME TIME_LIMI NODES NODELIST(REASON)
965037 day 11-ancIB alexs4 RUNNING 1:31:05 1-00:00:00 1 hpc-gpu-002
965226 day snakejob danip3 RUNNING 29:19 1-00:00:00 1 hpc-cpu-001
965227 day snakejob danip3 RUNNING 29:07 1-00:00:00 1 hpc-cpu-001
965230 day snakejob danip3 RUNNING 27:05 1-00:00:00 1 hpc-cpu-001
965274 day snakejob danip3 RUNNING 0:02 1-00:00:00 1 hpc-cpu-001
965275 day snakejob danip3 RUNNING 0:02 1-00:00:00 1 hpc-cpu-001
915974_4 month 2-aDNA_P alexs4 RUNNING 7-07:54:29 30-00:00:00 1 hpc-cpu-001
954429 month raxml_ng beatl RUNNING 8-16:32:45 30-00:00:00 1 hpc-cpu-001
957954_4 month EAGenome amelr1 RUNNING 7-19:08:15 30-00:00:00 1 hpc-gpu-002
963590 month ALLSAMPL amelr1 RUNNING 4-19:48:48 30-00:00:00 1 hpc-gpu-002
963605 month ONLY3XCo amelr1 RUNNING 4-19:46:39 30-00:00:00 1 hpc-gpu-002
964163 month 3-parall alexs4 RUNNING 3-04:31:30 30-00:00:00 1 hpc-cpu-006
964249 month 4-parall alexs4 RUNNING 2-07:02:27 30-00:00:00 1 hpc-cpu-006
964294 week unicycle larav RUNNING 1-13:06:46 6-21:00:00 1 hpc-gpu-002
964295 week unicycle larav RUNNING 1-13:03:04 6-21:00:00 1 hpc-gpu-002
964296 week unicycle larav RUNNING 1-13:01:30 6-21:00:00 1 hpc-cpu-001
964738 week mge_fast danip3 RUNNING 3:14:39 7-00:00:00 1 hpc-cpu-006
964739 week solver.s zekuw RUNNING 3:12:22 7-00:00:00 1 hpc-cpu-006
While your job is running, you can use scontrol to check its status:
scontrol show jobid <job_id>
For example:
robtest1234@hpc-head-002:~/demo/test4$ scontrol show jobid 965279
JobId=965279 JobName=rob-biomedisa
UserId=robtest1234(1399642667) GroupId=domain users(1399600513) MCS_label=N/A
Priority=4294715614 Nice=0 Account=core_research_labs QOS=normal
JobState=COMPLETED Reason=None Dependency=(null)
Requeue=1 Restarts=0 BatchFlag=1 Reboot=0 ExitCode=0:0
RunTime=00:00:04 TimeLimit=01:00:00 TimeMin=N/A
SubmitTime=2025-04-22T13:11:19 EligibleTime=2025-04-22T13:11:19
AccrueTime=2025-04-22T13:11:19
StartTime=2025-04-22T13:11:19 EndTime=2025-04-22T13:11:23 Deadline=N/A
SuspendTime=None SecsPreSuspend=0 LastSchedEval=2025-04-22T13:11:19 Scheduler=Main
Partition=hour AllocNode:Sid=hpc-head-002:1996908
ReqNodeList=(null) ExcNodeList=(null)
NodeList=hpc-gpu-002
BatchHost=hpc-gpu-002
NumNodes=1 NumCPUs=2 NumTasks=1 CPUs/Task=2 ReqB:S:C:T=0:0:*:*
TRES=cpu=2,node=1,billing=2
Socks/Node=* NtasksPerN:B:S:C=0:0:*:* CoreSpec=*
MinCPUsNode=2 MinMemoryNode=2G MinTmpDiskNode=0
Features=(null) DelayBoot=00:00:00
OverSubscribe=OK Contiguous=0 Licenses=(null) Network=(null)
Command=/gpfs/nhmfsa/bulk/share/data/mbl/share/workspaces/users/robtest1234/demo/test4/slurm_script.sh
WorkDir=/gpfs/nhmfsa/bulk/share/data/mbl/share/workspaces/users/robtest1234/demo/test4
StdErr=/home/robtest1234/demo/test4/job.%J.err
StdIn=/dev/null
StdOut=/home/robtest1234/demo/test4/job.%J.out
Power=
TresPerNode=gres:gpu
MailUser=robtest1234@nhm.ac.uk MailType=INVALID_DEPEND,BEGIN,END,FAIL,REQUEUE,STAGE_OUT
Once your job is finished, you can use sacct to view details of your job. This is very useful information, because it will allow you to define the exact requirements of your jobs and make good use of the computational resources:
sacct --format=User,JobID,Jobname,partition,state,time,start,end,elapsed,MaxRss,MaxVMSize,nnodes,ncpus,nodelist -j <job_id>
For example:
robtest1234@hpc-head-002:~$ sacct --format=User,JobID,Jobname,partition,state,time,start,end,elapsed,MaxRss,MaxVMSize,nnodes,ncpus,nodelist -j 965279
User JobID JobName Partition State Timelimit Start End Elapsed MaxRSS MaxVMSize NNodes NCPUS NodeList
--------- ------------ ---------- ---------- ---------- ---------- ------------------- ------------------- ---------- ---------- ---------- -------- ---------- ---------------
robtest1+ 965279 rob-biome+ hour COMPLETED 01:00:00 2025-04-22T13:11:19 2025-04-22T13:11:23 00:00:04 1 2 hpc-gpu-002
965279.batch batch COMPLETED 2025-04-22T13:11:19 2025-04-22T13:11:23 00:00:04 2484K 143144K 1 2 hpc-gpu-002
You can use sinfo -l to check that status of the cluster nodes. For example:
(base) robtest1234@hpc-head-002:~$ sinfo -l
Wed May 07 10:01:34 2025
PARTITION AVAIL TIMELIMIT JOB_SIZE ROOT OVERSUBS GROUPS NODES STATE NODELIST
month up 30-00:00:0 1-infinite no NO all 2 mixed hpc-cpu-001,hpc-gpu-002
month up 30-00:00:0 1-infinite no NO all 1 allocated hpc-cpu-006
week up 7-00:00:00 1-infinite no NO all 2 mixed hpc-cpu-001,hpc-gpu-002
week up 7-00:00:00 1-infinite no NO all 1 allocated hpc-cpu-006
day* up 1-00:00:00 1-infinite no NO all 2 mixed hpc-cpu-001,hpc-gpu-002
day* up 1-00:00:00 1-infinite no NO all 1 allocated hpc-cpu-006
hour up 1:00:00 1-infinite no NO all 2 mixed hpc-cpu-001,hpc-gpu-002
hour up 1:00:00 1-infinite no NO all 1 allocated hpc-cpu-006
sip up 30-00:00:0 1-infinite no NO all 2 mixed hpc-cpu-001,hpc-gpu-002
sip up 30-00:00:0 1-infinite no NO all 1 allocated hpc-cpu-006
sip up 30-00:00:0 1-infinite no NO all 1 idle hpc-cpu-005
gpu up 30-00:00:0 1-infinite no NO all 1 drained* hpc-gpu-001
galaxy up 30-00:00:0 1-infinite no NO all 2 mixed hpc-cpu-001,hpc-gpu-002
galaxy up 30-00:00:0 1-infinite no NO all 1 allocated hpc-cpu-006
interactive up 1-00:00:00 1-infinite no NO all 2 mixed hpc-cpu-001,hpc-gpu-002
interactive up 1-00:00:00 1-infinite no NO all 1 allocated hpc-cpu-006
ts up 1-00:00:00 1-infinite no NO all 1 drained* hpc-gpu-001
ts up 1-00:00:00 1-infinite no NO all 2 mixed hpc-cpu-001,hpc-gpu-002
ts up 1-00:00:00 1-infinite no NO all 1 allocated hpc-cpu-006
ts up 1-00:00:00 1-infinite no NO all 1 idle hpc-cpu-005
In the example above we can see the following:
- hpc-cpu-006 is in an allocated state, meaning it is fully utilized and cannot accept new jobs until the current ones are finished.
- hpc-cpu-001 and hpc-gpu-002 are in a mixed state, meaning they are running some jobs, but have free capacity to run more jobs.
- hpc-cpu-005 is in an idle state, meaning it is not currently running any jobs, and is ready to receive new jobs.
- hpc-gpu-001 is in a drained state, meaning it is down for maintenance and cannot accept new jobs.
You can cancel your running job with scancel <job_id>. For example:
scancel 965310
Look at your own jobs in the queue with squeue -u <username>. For example:
robtest1234@hpc-head-002:~/demo/test4$ squeue -u robtest1234
JOBID PARTITION NAME USER ST TIME NODES NODELIST(REASON)
965321 hour rob-biom robtest1 PD 0:00 1 (Resources)
965322 hour rob-biom robtest1 PD 0:00 1 (Priority)
965320 hour rob-biom robtest1 R 0:02 1 hpc-gpu-002
Advanced topics
If you feel adventurous and want to learn more advanced topics related to the cluster, here are a few options:
- Slurm cheat sheet.
- Array jobs with Slurm. When doing loads of repetitive sequential analysis, this is a more efficient way of submitting jobs, instead of having individual ones.
- Learn more about environment modules with Lmod.
- Singularity/Apptainer, a nice option to create containerized environments.
- Conda, a very popular open-source package management and environment management system.
- Snakemake, Python-inspired workflow/pipeline management system to create reproducible and scalable data, creating contained environments that you can later deploy and execute in systems with different configurations.
